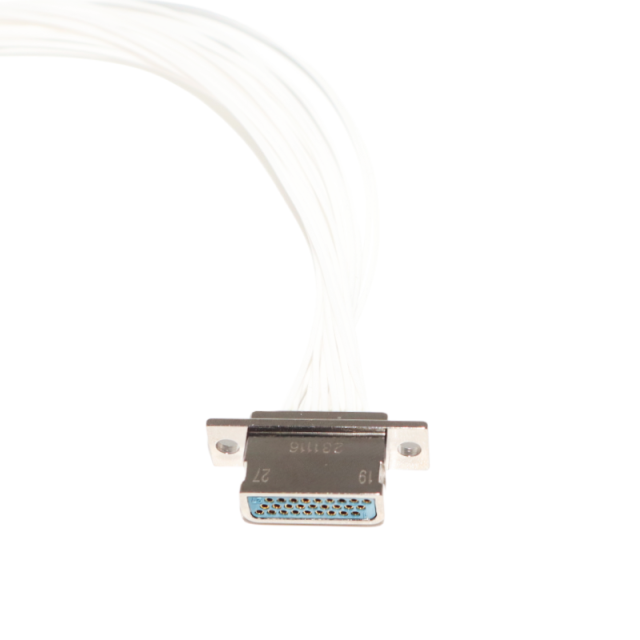

J14Q series

● J14Q series connenctor belongs to low frequency electric connector
● Screw locking mechanism
● round-angle anti-reverse insert design
● Cable tail cover has two ways of outlet, straight outlet and 90° outlet
● Small size, light weight
● End connector form is welded

→pdf download
GET A QUOTE
  • J14Q series
Desciption
Main technical performance
Rated current: 3A
Contact resistance: Before life test: :≤6mΩ
                                After life test: ≤10mΩ
Insulation resistance:  Under standard conditions: ≥2000MΩ
                                    Under humid conditions:  ≥20MΩ
Voltage resistance:     Under standard conditions: 500V
                                    Under low pressure conditions: 250V
                                    Under wet conditions: 250V
Mechanical life: 500 cycles

Performance specification
Temperature rating: -55 ℃ ~ +125 ℃
Relative humidity: at 40 ℃ ± 2 ℃, 90% ~ 95%
Vibration: at 10 Hz~2000 Hz, acceleration 196 m/s²
Shock: 980 m/s²
Atmospheric pressure: 101.3 KPa ~ 1.33 KPa
Acceleration: 780 m/s².
